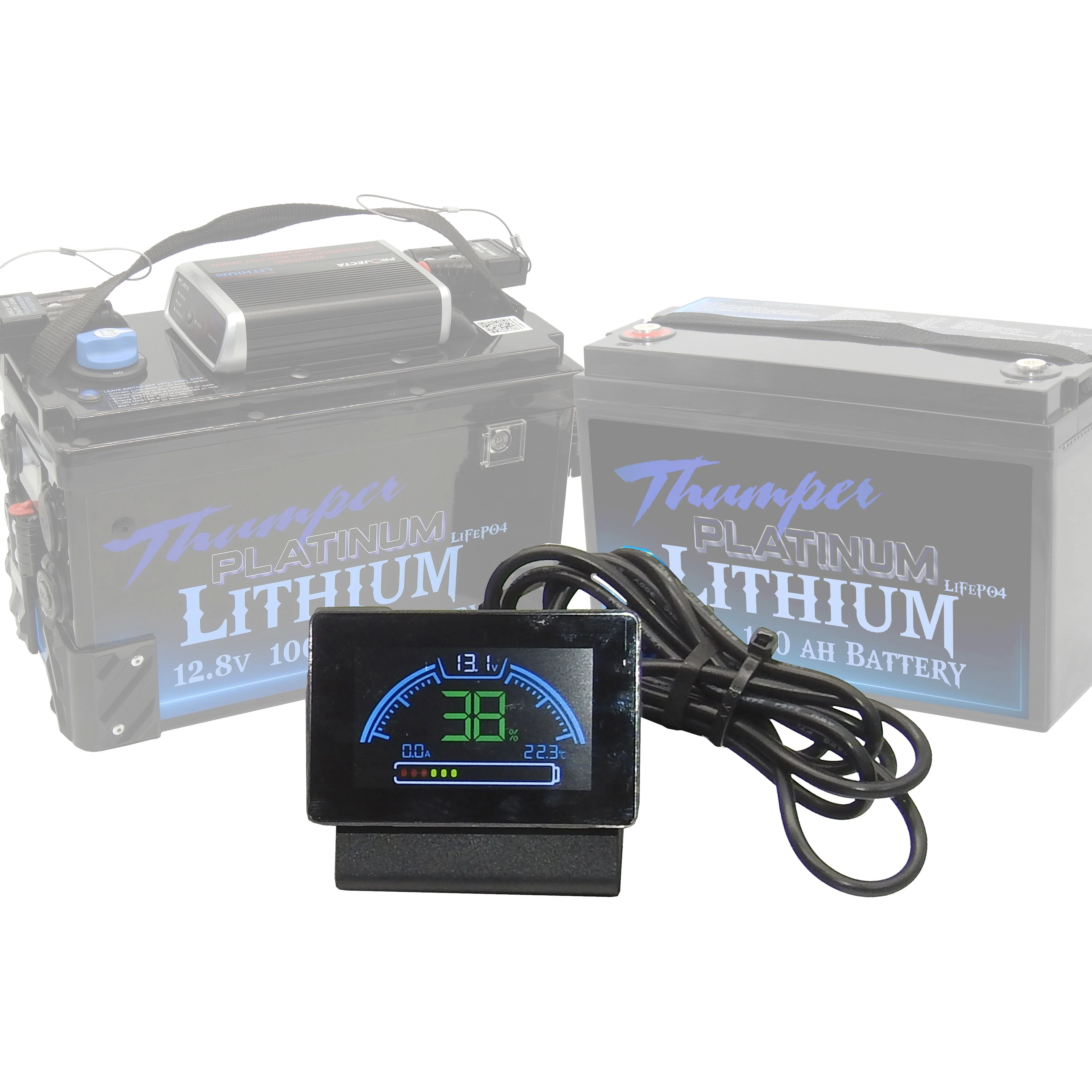

This remote head monitor suits the full range of Thumper Lithium Bluetooth batteries. This range includes:

Thumper Lithium Battery Hub - All Bluetooth models
Thumper Lithium 100 AH / 120 AH / 160 AH Bluetooth
Thumper Lithium Battery Pack - Bluetooth models

The remote head monitor is link directly with the internal BMS of the battery being monitored. It will act to provide an accurate reading of the battery it is connected to and will provide a summary of the information offered in the Bluetooth APP of the battery.

Included in this information is:

In order to link successfully, the remote head monitor will need to be within 5-10mt of the battery you are monitoring.

How to sync the remote head to the battery:

Ensure the remote head is connected to a power source via the positive and negative cable on the rear of the remote head.
Position the remote head close to the battery
Press and HOLD the side button to a period of 10 seconds
Release the button and the gauge will start to FLASH and will automatically SYNC

Note: It is important to note that leaving the screen illuminated can result in a power draw on the connected power source of approx. 6 Amps per full 24hours.

It is recommended to press the side button when not required to send the gauge into a sleep mode when not required.

Model No.	TBH-LCD07
Suits	All Thumper BLUETOOTH model LiFePO4 batteries
Power connection	12 volt, via positive and negative cable
Dimension	L 70mm x 45mm x 16mm (excluding bracket)
	L 70mm x 65mm x 42mm (including bracket)

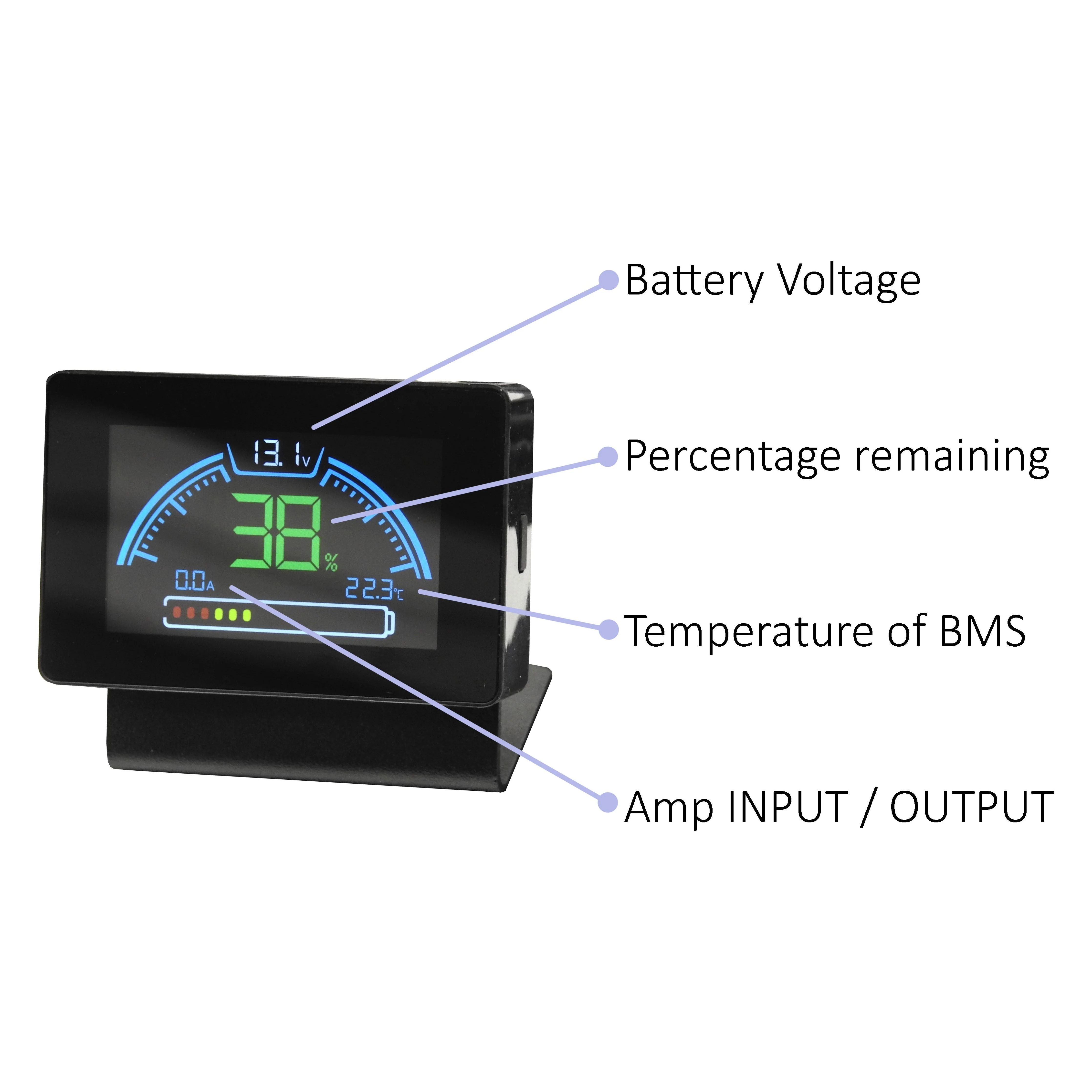

Readings	Battery Voltage
	Percentage remaining
	Amp INPUT / OUTPUT reading (bi-directional)
	Temperature of BMS / Batteries (highest will read)
	every three dots on bottom of gauge represents approx. 20% state of charge SOC
