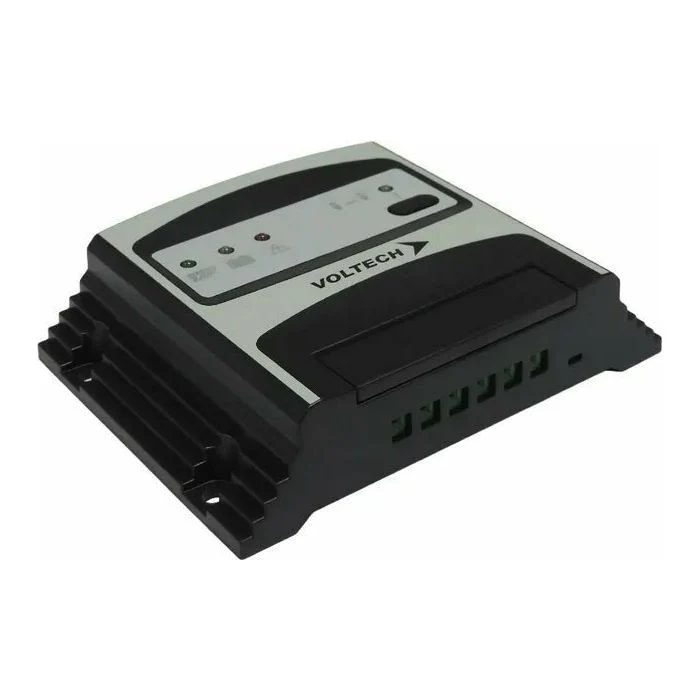

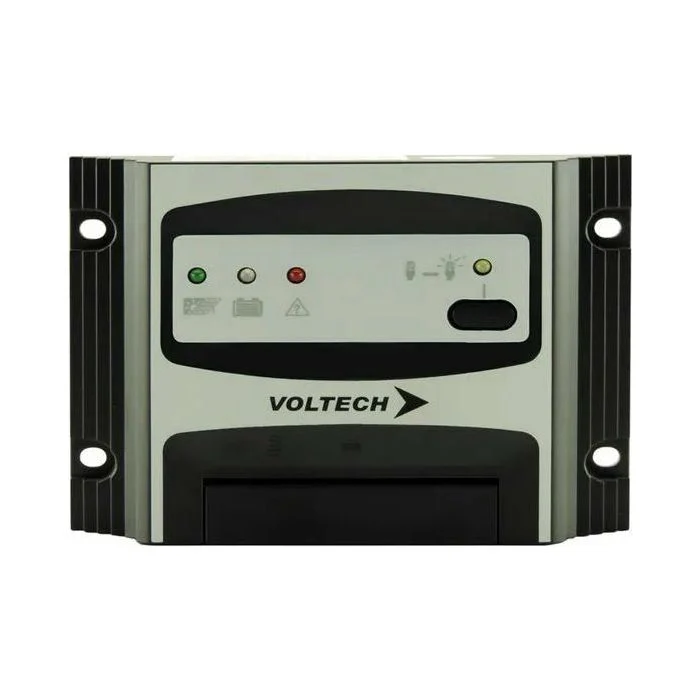

Solar charge controller Voltech 12V (10A) suits approx 160watts | ISC-1000

Product image 1
1 / 4

Solar charge controller Voltech 12V (10A) suits approx 160watts | ISC-1000

Protection functions

  • Overcharge protection
  • Deep discharge protection
  • Battery under voltage protection
  • Solar panel reverse current protection
  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of load,panel and battery
  • Automatic electronic fuse
  • Short circuit protection of load and panel
  • Over voltage protection at panel input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overload protection
  • Battery over voltage shutdown

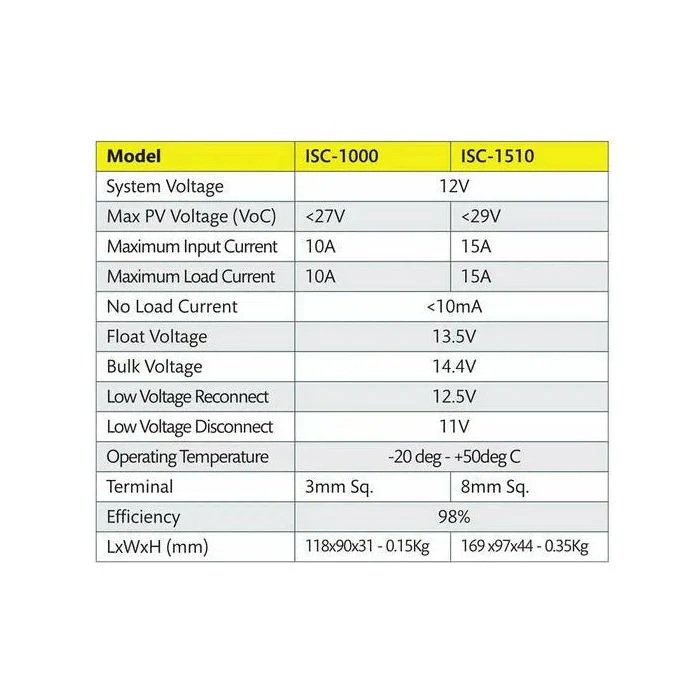

 Specifications:

Part Code ISC-1000
Brand  Voltech
Rated capacity 10 Amp
Max Input Voltage 29VDC
Overcharge voltage 14.4Vdc±2%
Over Discharge voltage 11Vdc±2%
Output Voltage 12V DC
Operating temperature -20°C/+50°C
IP rating IP32
Weight 0.15kg
Dimensions
118x90x31mm
Warranty 24 months
PWM Switching

 Download User manual here
